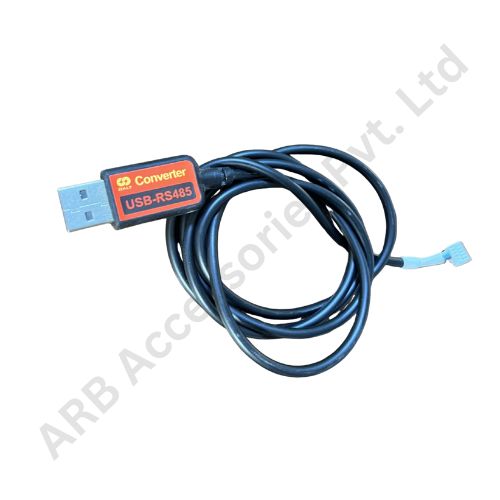

RS485 TOOLS CABEL (JBD)

The JBD RS‑485 Tool Cable (also called “RS‑485 Box” or “通信盒”) is a plug‑and‑play adapter that connects your computer to a JBD Smart BMS via the RS‑485 interface. This enables full access for diagnostics, configuration, monitoring, firmware updates, and integration with external controllers and software.

Physical Features & Specifications

Compact PCB module: Approx. 78 × 44 × 1.8 mm housed in a small plastic or PCB enclosure
USB cable included: Standard USB 2.0 cable (usually ~1 m) for PC connection
RS‑485 connector cable: Pre-wired leads ready to plug into the BMS RS‑485 port
Baud rate: Commonly 9600 bps (with options for custom rates) to match the BMS communication settings

Key Functions

Parameter Monitoring & Configuration
Connects to JBDTools (Windows) or mobile apps to tweak BMS settings like overvoltage, balancing thresholds, sleep modes, and more.
Firmware Updates
Enables flashing new firmware revisions safely through a PC interface.
Integration Support
Allows connecting your BMS to data loggers, inverters, or systems supporting Modbus (RTU) or proprietary protocols over RS‑485.

Use Cases

Configuring battery voltage thresholds, currents, cell balancing schedules
Real-time battery diagnostics and monitoring during commissioning
Firmware management and recovery
Connecting to home automation/inverter setups (e.g., Victron Venus, USR‑DR302, modular solar systems) via RS‑485 or Modbus
