BMS PCBA (2) 2S 4A XBL
Product Price
₹0
Description
The BMS PCBA 2S 4A XBL is a smart and durable Battery Management System designed specifically for 2-cell (2S) Lithium-ion (7.4V) battery packs. Tailored for applications that require stable current flow, precision protection, and compact assembly, this BMS module ensures your battery performs efficiently, safely, and reliably across its lifecycle.
Key Features
Advanced Protection Circuitry
The module incorporates intelligent protection against:
- Overcharge
- Over-discharge
- Overcurrent
- Short-circuit events
These protective features help extend battery life and ensure maximum operational safety.
Plug & Weld Integration

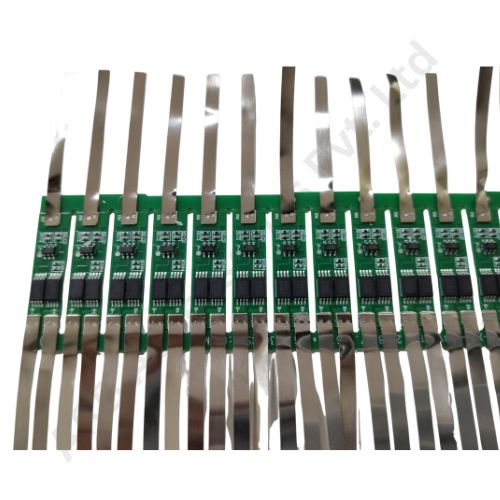

Equipped with nickel strips, the BMS board can be directly spot-welded to battery terminals, eliminating additional soldering hassles and saving time during assembly.
Application Versatility
Whether you're powering IoT devices, LED torches, handheld tools, or backup storage modules, the BMS PCBA 2S 4A ensures reliable power flow and safe operation at all times.
Technical Specifications
| Specification | Details |
|---|---|
| Battery Type | Lithium-Ion (3.7V/cell) |
| Configuration | 2S (2 cells in series) |
| Nominal Voltage | 7.4V |
| Charging Voltage | 8.4V (4.2V/cell) |
| Max Charging Current | 4A |
| Max Discharging Current | 4A |
| Short Circuit Protection | Yes (Auto-recovery) |
| Overcharge Protection | Yes |
| Over-discharge Protection | Yes |
| PCB Type | PCBA with integrated nickel tabs |
| Temperature Range | -20°C to 60°C |
| Dimensions | Compact for space-constrained battery packs |
Ideal Applications
- Portable LED lighting
- IoT sensor systems
- Battery packs for drones or robots
- Smart handheld tools
- Compact battery banks
- Educational electronics kits
