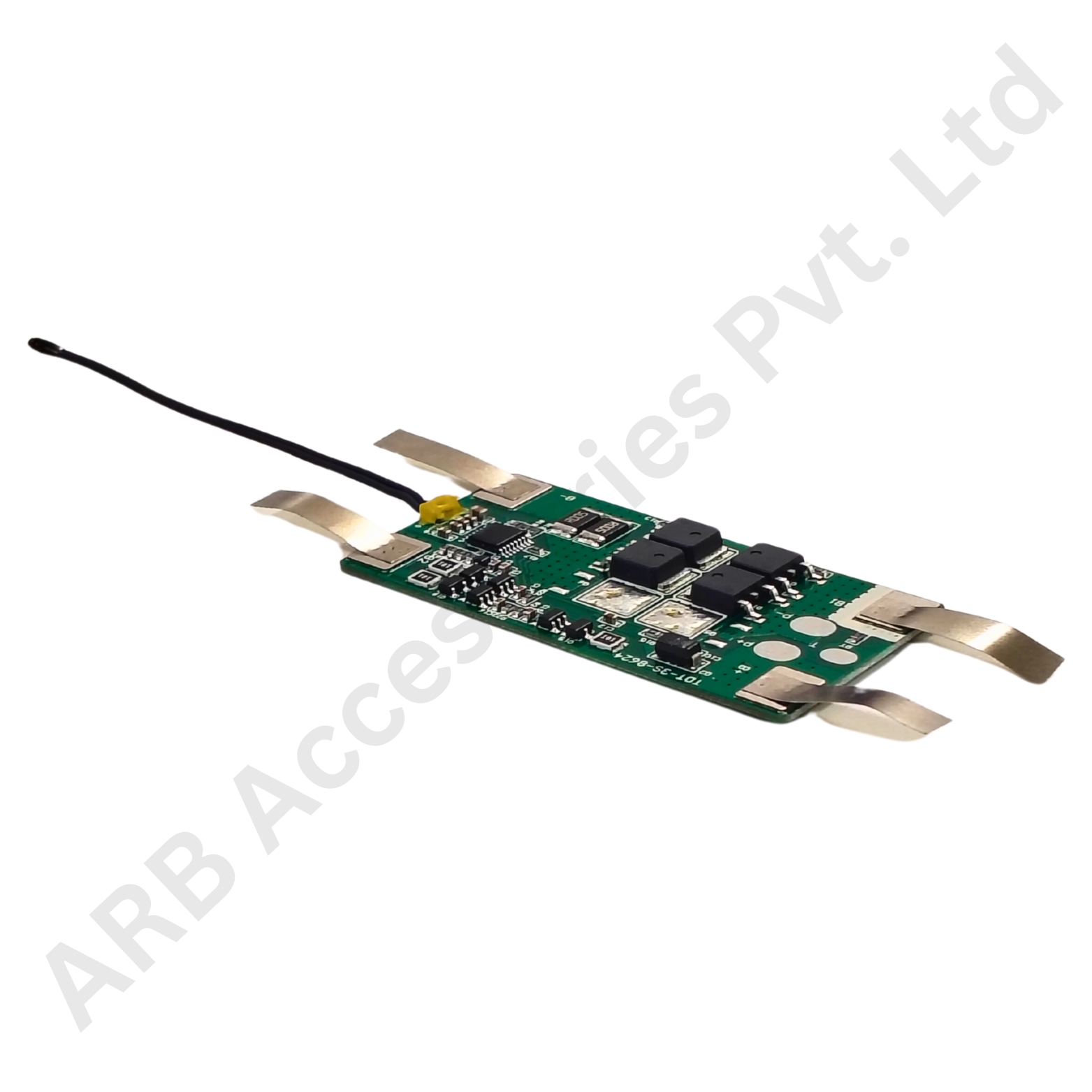

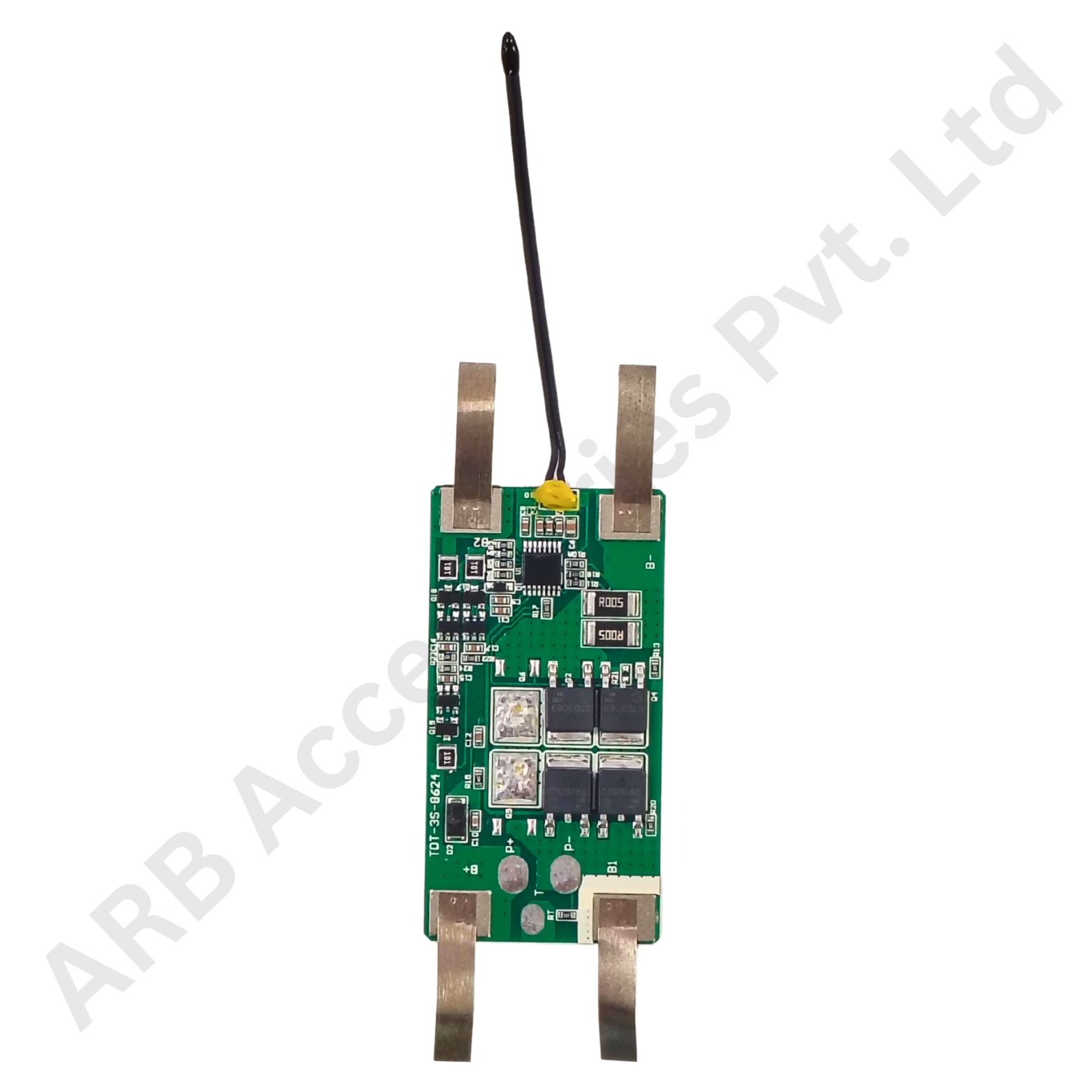

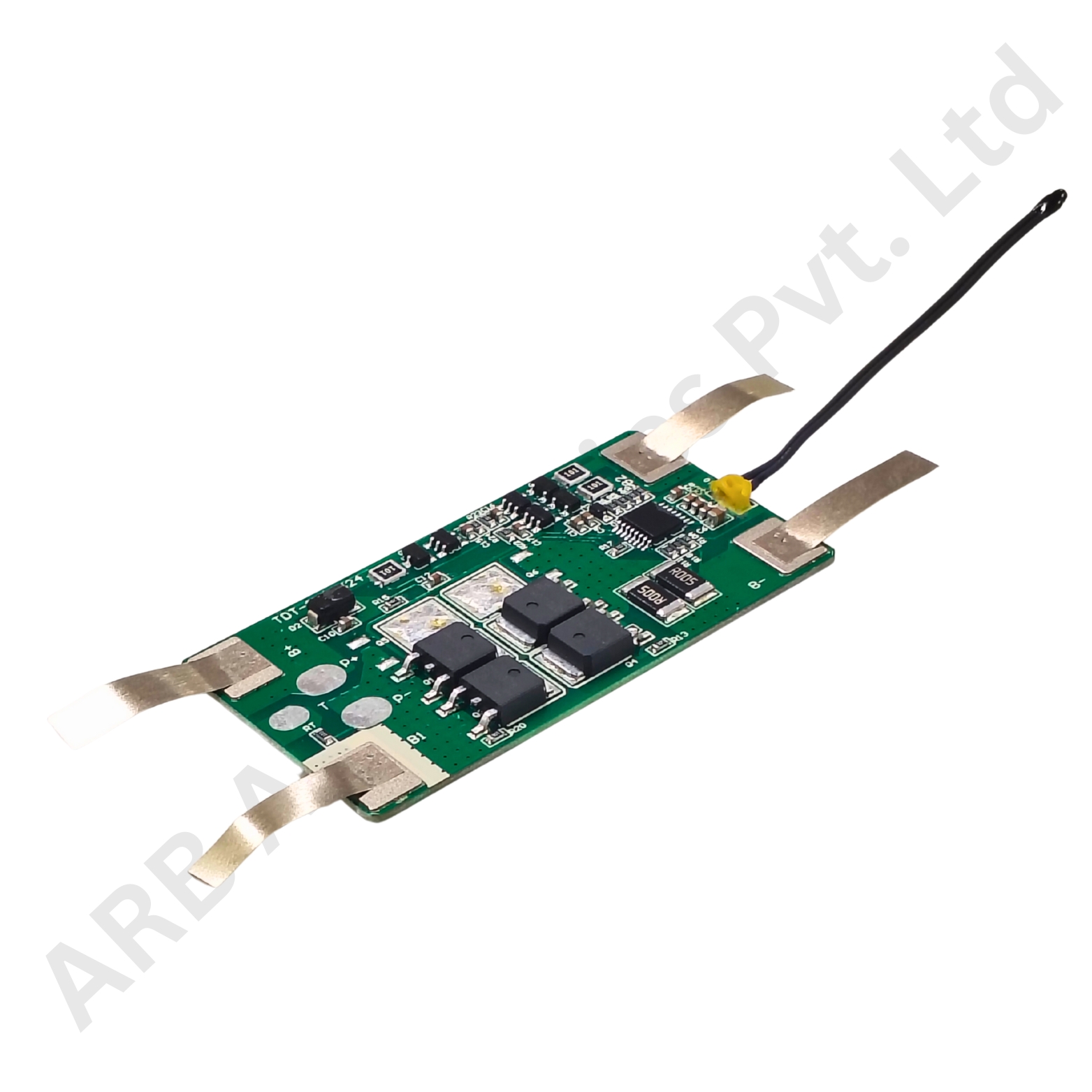

BMS NMC 3S 10A WITH NICKEL WITH BALANCE TDT (47c0)

Small BMS NMC 3S 10A 8811 TDT PCB Hardware

Product Data Sheet

The BMS NMC 3S 10A WITH NICKEL WITH BALANCE (TDT) is a high-efficiency Battery Management System designed to protect, regulate, and balance 3S (3-cell series) Lithium-ion NMC (Nickel Manganese Cobalt) battery packs. Equipped with pre-attached nickel strips and a temperature protection system, this BMS is perfect for use in various applications ranging from electric mobility to energy storage systems, offering a compact, safe, and professional battery protection solution.

Technical Specifications

• Capacity: Varies by model
• Nominal Voltage: 11.1V (3S configuration)
• Maximum Discharge Current: 10A
• Chemistry: Nickel Manganese Cobalt (NMC) Lithium-Ion
• Protection: Integrated PCB for overcharge, over-discharge, and short-circuit protection
• Cycle Life: 500+ charge/discharge cycles
• Applications: Electric vehicles, robotics, high-performance devices
• Performance: High energy density, stable power output, long lifespan, enhanced safety features

Key Features

• Intelligent Protection Circuitry: Safeguards your battery from overcharge, deep discharge, overcurrent, short circuit, and temperature extremes.

• Nickel Pre-Strip Ready: With high-quality nickel tabs pre-welded, save assembly time and enhance conductivity for current transfer.

• Passive Balancing Technology: Automatically equalizes cell voltages, ensuring all three cells in the 3S pack charge uniformly to prevent premature wear.

• Thermal Sensor (NTC): Comes with an integrated NTC thermistor to monitor temperature and prevent overheating.

• Plug-and-Play Design: Compact layout with dedicated P-, B+, and B- terminals simplifies wiring and integration.

Applications

Perfect for powering:

• E-bikes & scooters
• Power banks & UPS backup packs
• DIY electronics & robotics
• Solar lighting & energy storage
• Small mobility or utility carts

The NMC 3S 10A 8811 TDT PCB is a high-performance lithium-ion battery designed for applications that require high power output and safety. With a nominal voltage of 11.1V (3S configuration) and a maximum continuous discharge current of 10A, it is ideal for power-hungry devices. The integrated Protection Circuit Board (PCB) offers multiple safety features, including protection against overcharging, over-discharging, and short circuits, ensuring the battery operates safely and reliably over its lifespan. Utilizing NMC (Nickel Manganese Cobalt) chemistry, it provides high energy density, stable power output, and extended cycle life, making it perfect for electric vehicles, robotics, and high-performance devices.
