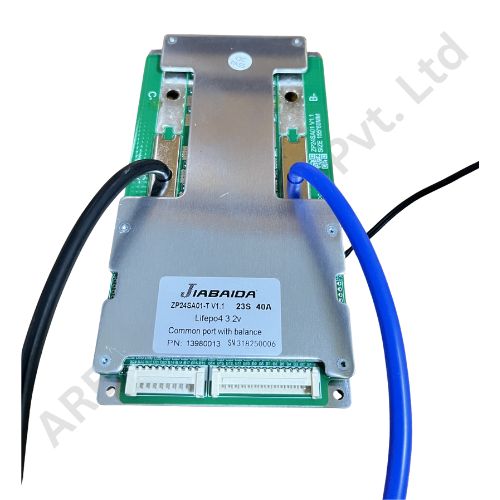

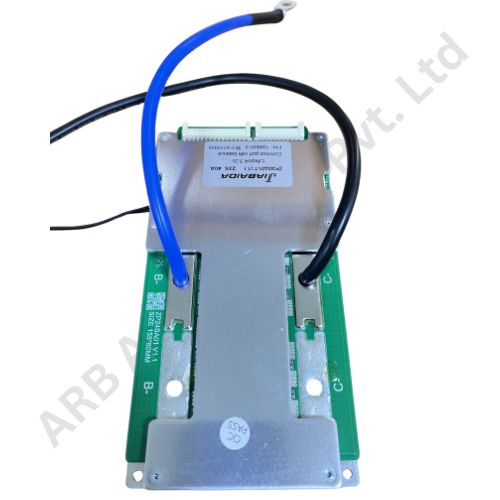

BMS LFP 23S 40A JBD (ZP24SA01)

The JBD ZP24SA01 is a robust Battery Management System (BMS) designed for 23-series (23S) LiFePO₄ (Lithium Iron Phosphate) battery packs. With a continuous current capacity of 40A, this BMS ensures efficient and safe operation of your battery systems. It's an ideal choice for various applications, including solar energy storage, electric vehicles, and uninterruptible power supplies (UPS).

Key Specifications

• Battery Configuration: 23S LiFePO₄ cells
• Nominal Voltage: 73.6V (3.2V × 23)
• Continuous Charge/Discharge Current: 40A
• Cell Voltage Range: 2.0V – 3.75V
• Charging Voltage: 3.6V × 23 = 82.8V
• Interface Type: Single port for both charging and discharging
• Operating Temperature: -20°C to 75°C
• Power Consumption: ≤50μA
• Circuit Resistance: ≤20mΩ([store.arbaccessories.in][1], [store.arbaccessories.in][2])

Features

Efficient Cell Balancing

The ZP24SA01 incorporates passive balancing to maintain voltage uniformity across all 23 cells, enhancing the longevity and performance of your battery pack.

Comprehensive Protection Mechanisms

This BMS offers multiple layers of protection to ensure the safety and reliability of your battery system:

• Overcharge Protection: Prevents cell voltage from exceeding safe limits.
• Over-discharge Protection: Shuts down discharge when cell voltage drops below threshold.
• Overcurrent Protection: Guards against excessive current draw.
• Short-Circuit Protection: Instantaneous response to prevent damage.
• Temperature Protection: Monitors and manages temperature extremes.

Communication Capabilities

The ZP24SA01 supports UART/RS485 communication protocols, allowing for real-time monitoring and configuration through compatible software tools.

Applications

The JBD ZP24SA01 BMS is suitable for a wide range of applications, including:

• Solar Energy Storage Systems (ESS)
• Electric Vehicles (EVs)
• Uninterruptible Power Supplies (UPS)
• Industrial Equipment
• Marine and RV Battery Systems
