BMS LFP 16S 40A JBD (ZP16S011) (732c)
Product Price
₹645
Description

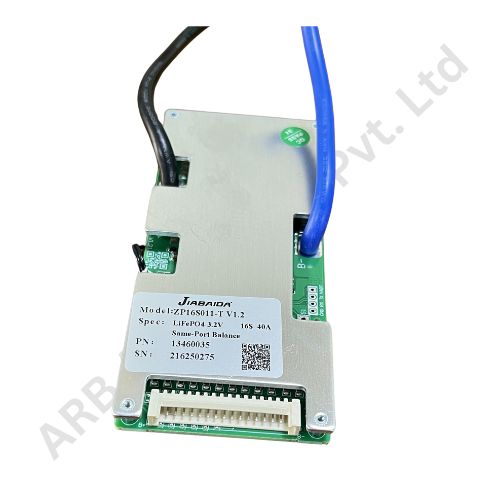

JBD BMS LFP 16S 40AMP Hardware (ZP16S011)
Product Data Sheet (ZP16S011)
Here is a complete 500-word markdown product description for BMS LFP 16S 40A JBD (ZP16S011), crafted using the BESD (Benefits, Elements, Specifications, Details) framework and optimized for SEO:
Benefits
Designed for 16S (51.2V) LiFePO4 Battery Packs
The ZP16S011 V1.2 BMS by Jiabaida is purpose-built for 16 series 3.2V lithium iron phosphate (LiFePO4) battery configurations, commonly used in high-performance energy storage and electric mobility applications.
Safe and Reliable 40A Operation
This model provides a continuous 40A current handling capacity, offering stable and reliable power delivery while ensuring long cycle life and consistent performance under moderate load.
Smart Protection System
Multiple safety layers guard your battery against over-voltage, under-voltage, over-current, over-temperature, and short circuits. It also includes a temperature sensor input for precise thermal protection and auto shutdown mechanisms.
Balance and Efficiency
Built-in same-port passive balancing keeps all cells in your battery pack equally charged, promoting longer overall battery life and better power efficiency. Ideal for both daily-use packs and large-scale ESS.
Expandable Monitoring
Optional UART/RS485 communication support allows seamless integration with smart monitoring apps or IoT modules for real-time data and control capabilities.
Elements
- Product Name: BMS LFP 16S 40A
- Manufacturer: Jiabaida (JBD)
- Battery Chemistry: LiFePO4 (3.2V/cell)
- Series Configuration: 16S
- Rated Continuous Current: 40A
- Port Type: Same Port (Charge & Discharge combined)
- Communication Interface: UART/RS485 (optional)
Technical Specifications
| Specification | Details |
|---|---|
| Battery Type | Lithium Iron Phosphate (LiFePO4) |
| Nominal Pack Voltage | 51.2V (16S × 3.2V) |
| Max Charge Voltage | ~58.4V (3.65V/cell max) |
| Discharge Cutoff | ~40V (2.5V/cell min) |
| Continuous Discharge | 40A |
| Charge Current | 20A–25A recommended |
| Balance Current | ~30–60mA (Passive) |
| Protection | Overcharge, Overdischarge, Overcurrent, Short-circuit, Over-temp |
| Communication Port | UART (optional module needed) |
| Temperature Monitoring | Yes, NTC support |
| PCB Dimensions | Approx. 130 x 60 x 12 mm |
| Weight | ~110g |
Applications
- 51.2V LiFePO4 E-Bike/E-Rickshaw battery packs
- Solar power ESS & off-grid systems
- Home battery banks (UPS/Backup)
- Industrial DC equipment or DIY energy storage solutions
Product Details
-
Part Number: 13460112
-
Serial Number: Unique to each batch (includes QR code)
-
Protection Mode: MOSFET hardware-based auto cutoff
-
Brand Compatibility: Compatible with all 16S LiFePO4 cells
-
Warranty: 6 months (limited manufacturer warranty)
-
Availability: In Stock at ARB Accessories
