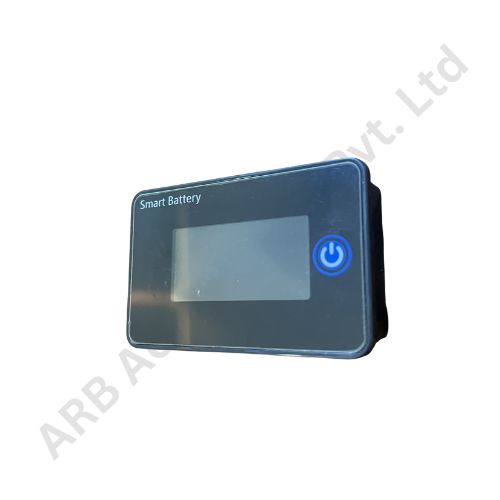

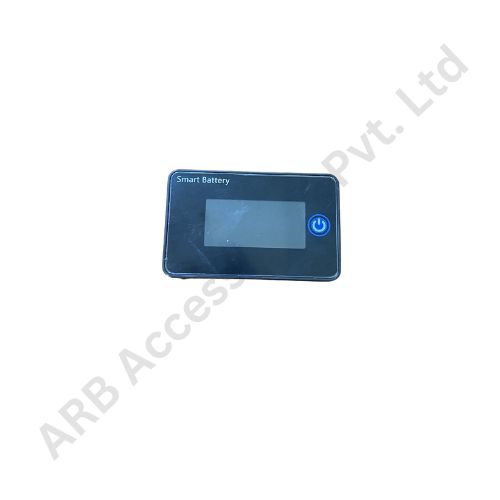

BATTERY INDICATOR SOC (JBD) (479d)
Product Price
₹500
Description
The Battery Indicator is a digital display unit that connects directly to JBD (Jiabaida) BMS communication ports via UART. It reads and displays live data from the BMS including percentage-based SOC, voltage, and system status. This allows users to visually monitor battery health without the need for smartphones, apps, or PCs.
It’s the perfect solution for system builders and end users who want real-time information on the go, without relying on wireless or software interfaces.
Key Features
-
SOC (State of Charge) Display
Accurately shows battery charge level as a percentage, improving visibility into available power. -
Real-Time Voltage & System Status
Displays current battery voltage and charging/discharging condition directly from the BMS. -
JBD UART Communication Support
Compatible with most JBD Smart BMS units using the standard UART interface (typically 4/5-pin). -
Compact LCD/LED Screen
Clear and bright display that is easy to read even in daylight conditions. -
Plug-and-Play Installation
Comes prewired for quick connection to JBD BMS UART ports — no software setup required. -
Low Power Consumption
Designed for 24/7 monitoring without draining the battery pack.
⚙️ Technical Specifications
| Parameter | Details |
|---|---|
| Display Type | LCD / LED (based on batch variant) |
| Compatible BMS | JBD Smart BMS (Li-ion / LiFePO4 / LTO) |
| Input Voltage | Powered via UART from BMS (3.3V–5V) |
| Connection Interface | UART 4-pin/5-pin (JST-style plug) |
| Data Refresh Rate | <1 second (real-time updates) |
| Dimensions | Compact module (~40mm x 25mm screen size) |
| Mounting Style | Front panel mountable or enclosure-integrated |
Applications
- Electric bicycles and scooters
- Solar battery banks and home energy systems
- DIY lithium battery projects
- Portable power stations and UPS systems
- Industrial and IoT battery monitoring panels
Package Includes
- 1x Battery Indicator SOC Display
- Pre-attached UART cable (for JBD connection)
- Quick start guide (digital format available)
